Tap (quick press) the middle power button to turn on the Minirig 4
To enter Bluetooth pairing mode, press and hold the middle power button
Open Bluetooth settings on your phone and “add device” or “pair new device”
Select Minirig 4 and once connected, start playing music

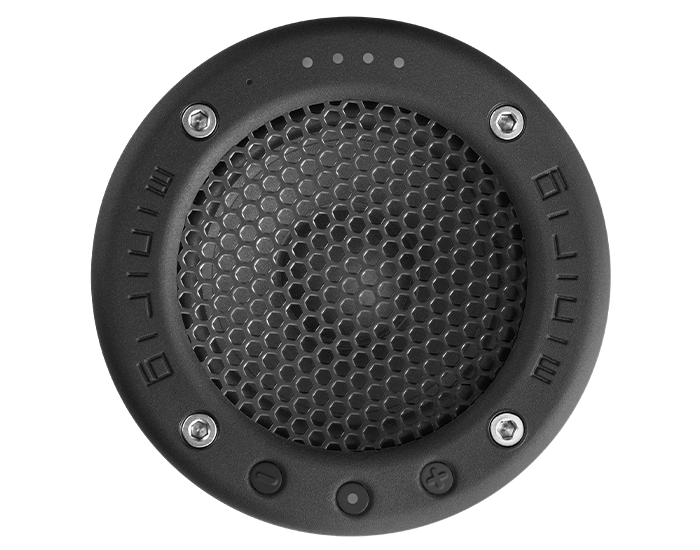

To turn the Minirig 4 off, tap (quick press) the power button
Watch the video to help you get started
Use the volume controls on your phone or music player to change volume via Bluetooth
You can also press the + and - buttons on the Minirig 4 to change volume
You can also change the volume using the Minirig app

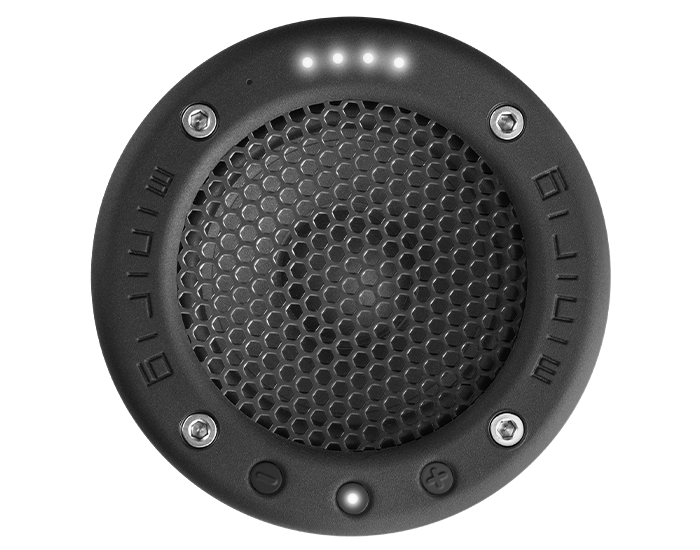

The 4 LEDs will light up to show the volume level

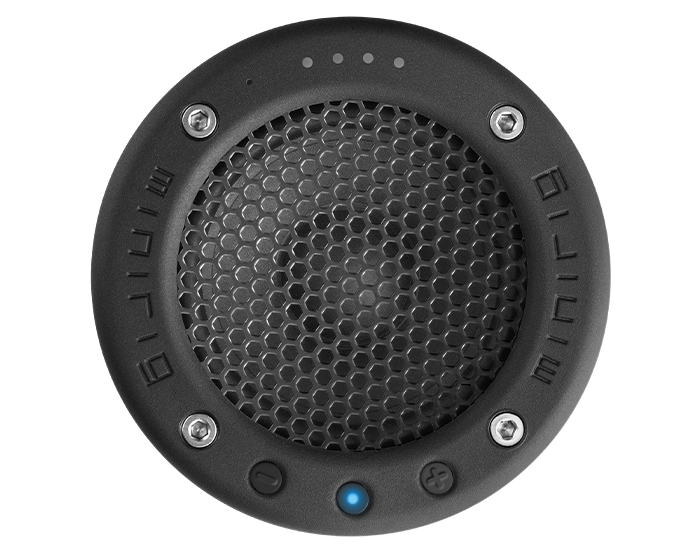

When the Minirig 4 is on you can check the battery level by shaking it
The 4 LEDs will fade in and show the battery level as follows:
0000 = LOW (charging required)
0000=10-25%
0000=25-50%
0000=50-75%
0000=75-100%
If the battery level is too low to turn on, the first LED will flash red
To charge the Minirig 4, plug the USB-C end of the included cable into the USB-C socket on the Minirig and the other end into a powered USB port
The 4 LEDs will ramp up in brightness to show charging. This will stop when charging is complete
For faster charging, use a USB-C “PD” power supply and USB-C to USB-C cable (not included)
Press the power button to turn on the Minirig 4
Plug an aux cable into your music source
Insert the other end of the aux cable into the TOP socket of the Minirig 4

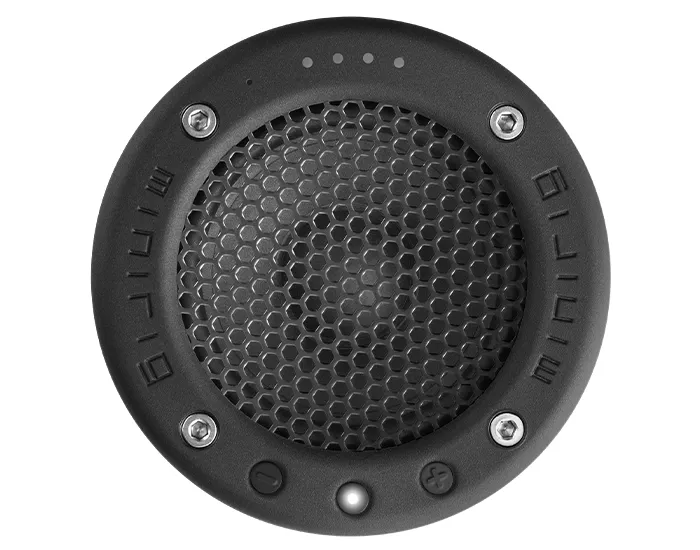

The power button LED will turn green
Use the volume buttons on the Minirig 4 to change the volume
For best sound, turn up the volume of your source and turn down the volume on the Minirig 4
Press the middle power button to turn on the Minirig 4
Connect and start playing music via Bluetooth
Insert an aux cable into the BOTTOM socket of the Minirig 4
Plug the other end into the other device - i.e Minirig Subwoofer or Minirig
Use the volume control on your phone and Minirigs to vary the volume
When in aux out mode you can configure the Minirig 4 to play in stereo with another Minirig via aux cable
Press the volume + and volume - buttons at the same time to toggle between LEFT, MONO and RIGHT modes
You will see the 4 LEDs change to show the mode:
0000 = LEFT
0000 = MONO
0000 = RIGHT
The aux output will change automatically to give stereo sound
You can use the Minirig 4 with older products such as a Minirig 3 in this way
Start by turning both Minirigs on and play music through ONE of them
Press and hold volume + on the speaker NOT playing music
Press and hold volume + on the speaker playing music

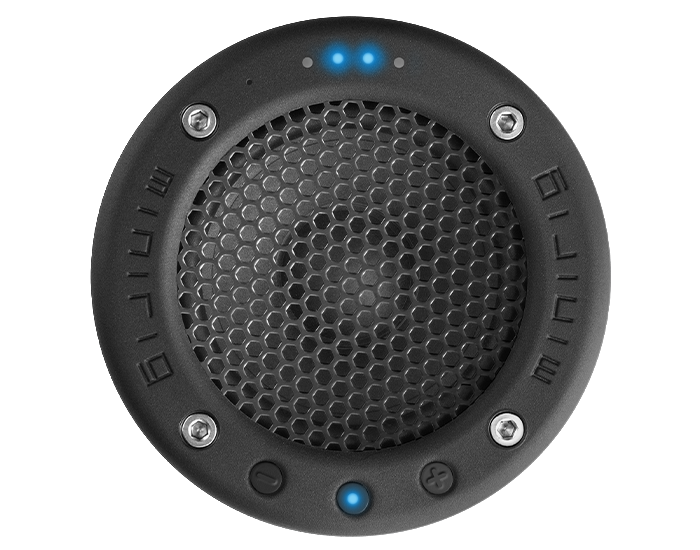

You will see the 4 LEDs flash in a blue pattern
After a few seconds they will pair and play in stereo
Watch the video
Start by turning all the Minirigs on and play music through ONE of them
Press and hold volume - on all the speakers NOT playing music
Press and hold volume - on the speaker playing music (source)
You will see the 4 LEDs flash in a blue pattern
After a few seconds they will pair and play in mono
Once the source Minirig has finished flashing, you can control the volume of all the speakers using your phone
You can configure the balance and volume of each linked speaker using the buttons
To add add more Minirigs, go back to step 2
Start with your Minirigs connected in wireless stereo
Press the power button on the Minirig that is connected to your phone to turn it off
The other Minirig will also turn off

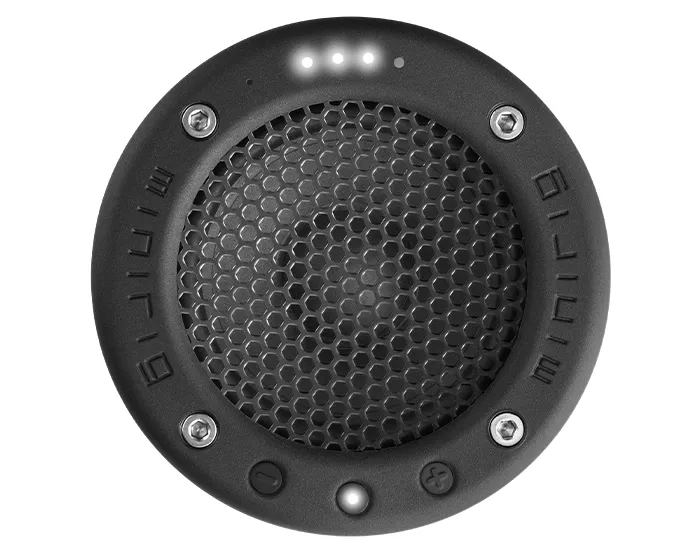

When you want to use them again, turn them both on within 5 seconds of each other
They will automatically reconnect to each other and your phone
You can disable this feature using the app
Start with your Minirigs connected in link-up mode
Turn off all the Minirigs that are NOT connected to your phone - the ones with a blue power LED
Turn off the Minirig that is connected to your phone, the one with a white power LED
When you want to use them again, turn all the speakers on within 20 seconds of each other
They will automatically reconnect to each other and to your phone
You can disable this feature using the app
Locate a USB-C to USB-C cable
Plug one end into the USB-C port of the Minirig 4 and plug the other end into the USB-C port of your device
Depending on the device, the Minirig will either take power from your device or provide power to your device
The 4 LEDs will ramp up or down to show the direction of power
To change the direction of power, unplug the USB-C cable, wait 3 seconds and then insert it again
Non USB-C devices can be powered using a “USB-C OTG” adapter
If you are connected to a Minirig 4 and a call comes through, the LEDs will start flashing green
To answer the call, press and hold volume +
To reject the call, press and hold volume -
The change the volume during the call, use the volume + and volume - buttons
To end the call, press and hold the volume - button
To disable this feature:
Android: Find the Minirig 4 in your Bluetooth settings. Open device details for Minirig 4 and disable “phone calls
iOS: Go to Settings > Accessibility > Touch > Call Audio Routing, then choose your desired audio destination
Download the app using the links below (Coming Soon). Alternatively, you can access the app from any Chrome browser using the link: app.minirigs.co.uk
When the app opens, press “search for device”
When “Minirig 4” appears, press it. If nothing appears, search again
Once connected, use the controls on the main page to change the sound
Use the settings page for further features and software updates
